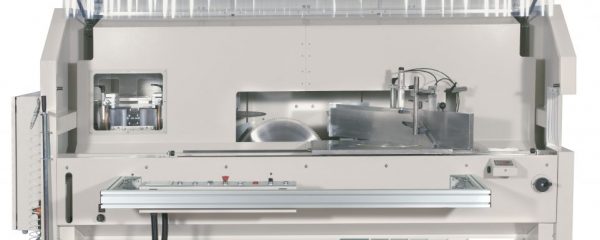

MAGMA – Notching saw with two blades

TECHNICAL DATA

x self braking motors 3kw each at 2800 r.p.m

Hydro-pneumatic saw feed max. stroke 970 mm

Vertical sawing unit:

pivoting 45° outward, 60° inwards

Horizontal sawing unit: tilting from + 60° to – 60°

Pivoting angle fence 30°-90°-30°

2xautomatic lubrication set (venturi)

Horizontal blade Ø 500 mm

Vertical blade Ø 600 mm

Max.cutting width at 90°: 300 mm

Max.cutting width at 45°: 190 mm

Max.cutting width at 30°: 100 mm

Max.heigth of the Pc. To be cutted 280 mm

– Max – cutting depth at 90°

Horizontal 185 mm

Vertical 235 mm

– Max – cutting depth at 45°

Horizontal 185 mm

Vertical 235 mm

– Max – cutting depth at 30°

Horizontal 130 mm

Vertical 235 mm
