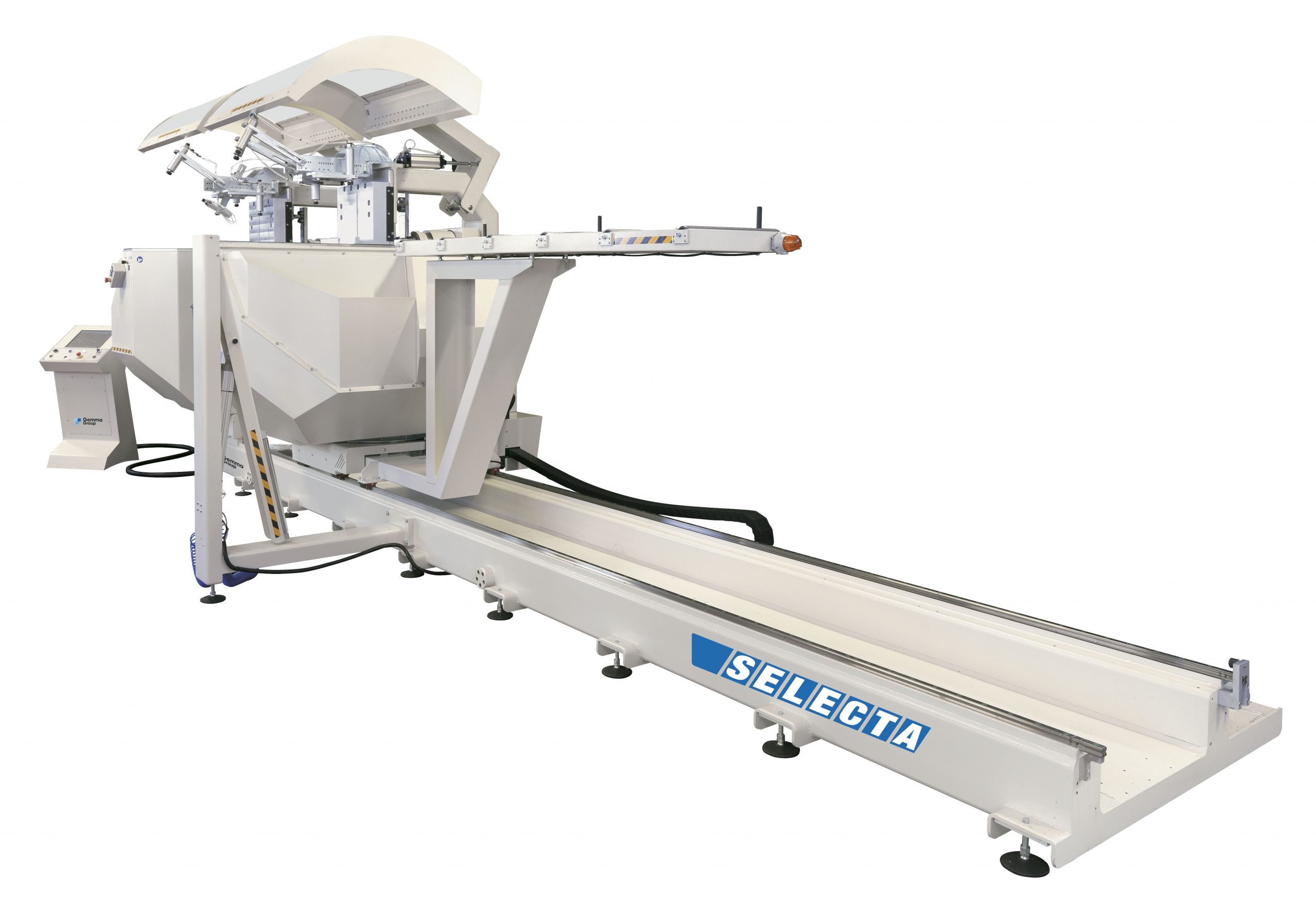

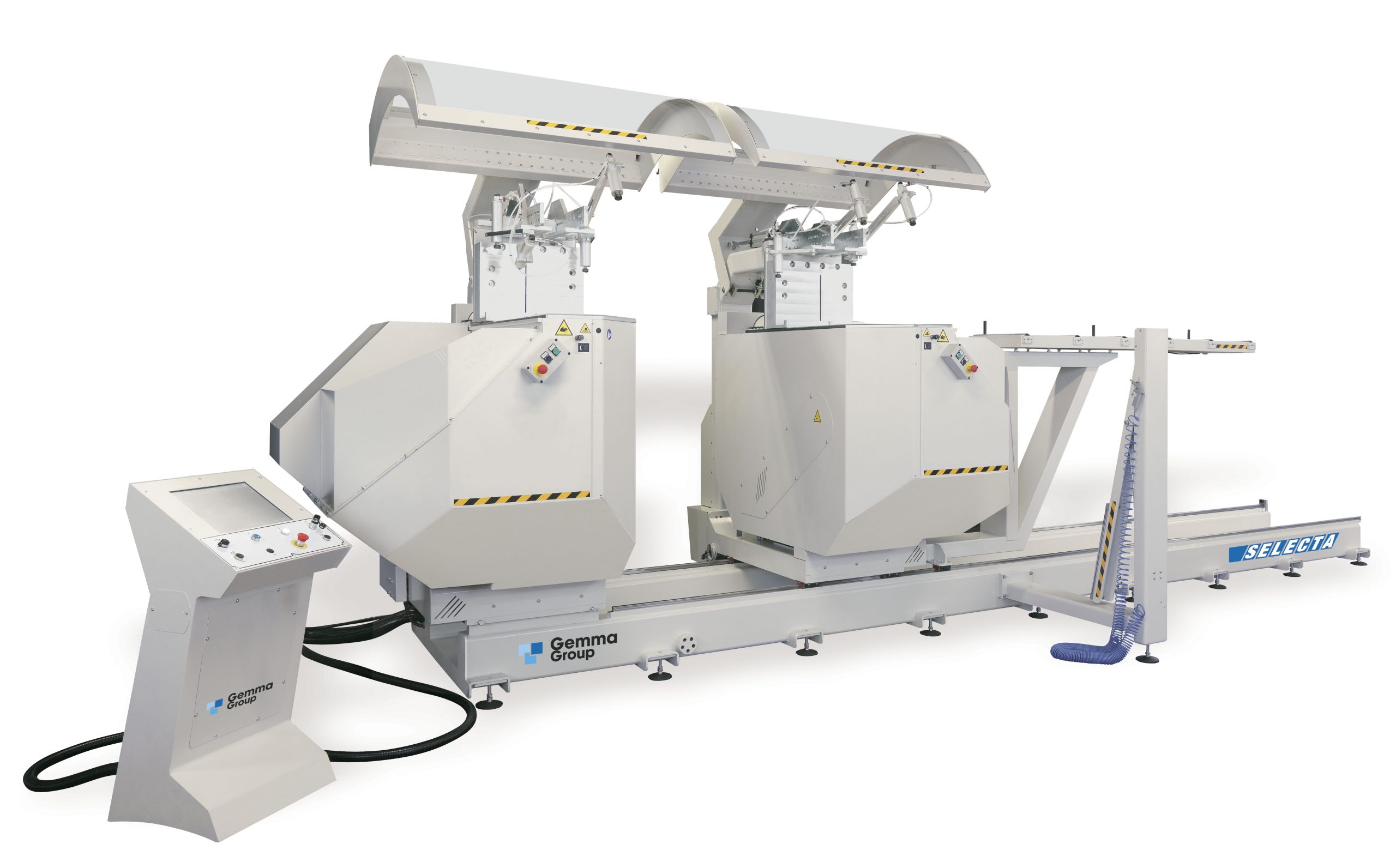

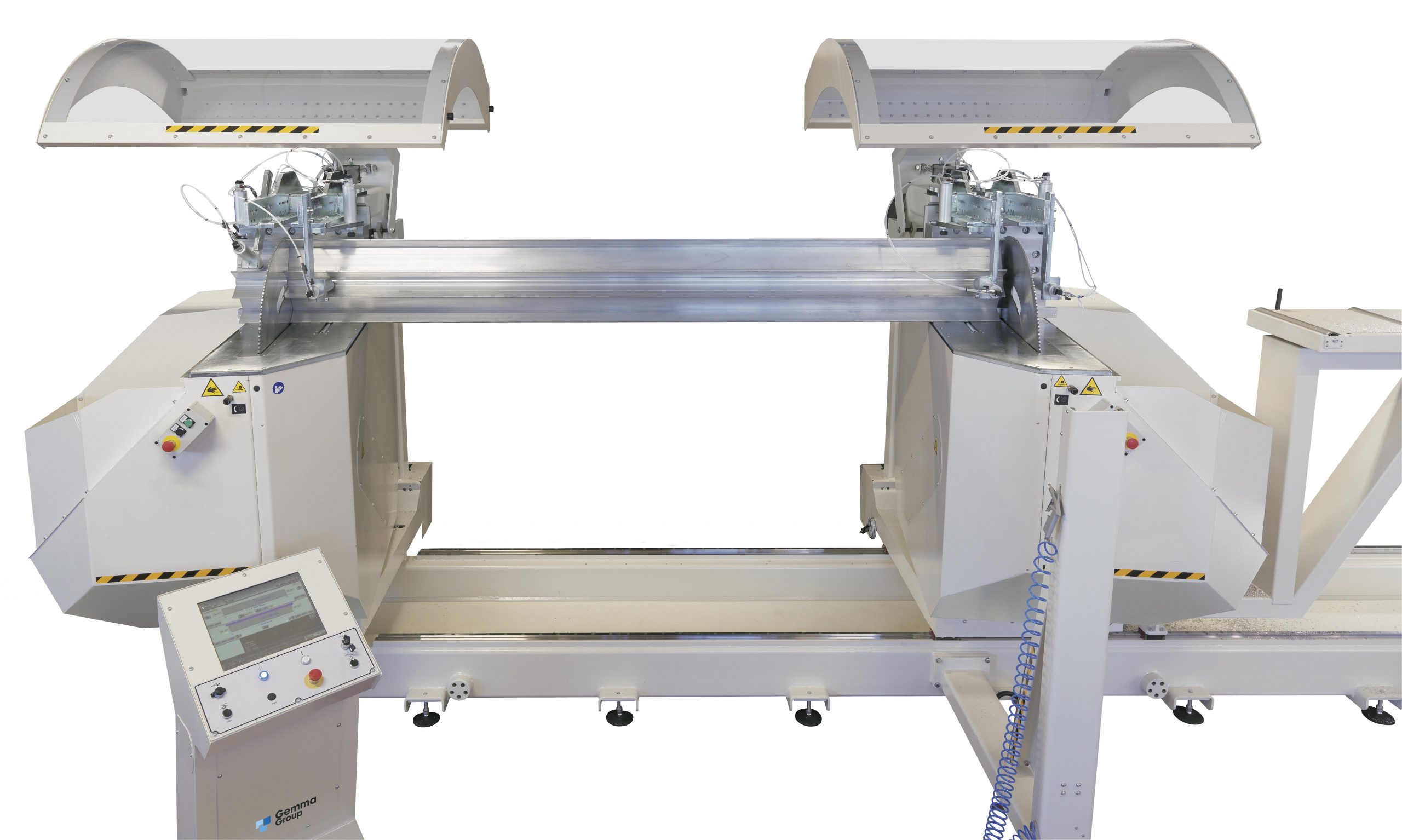

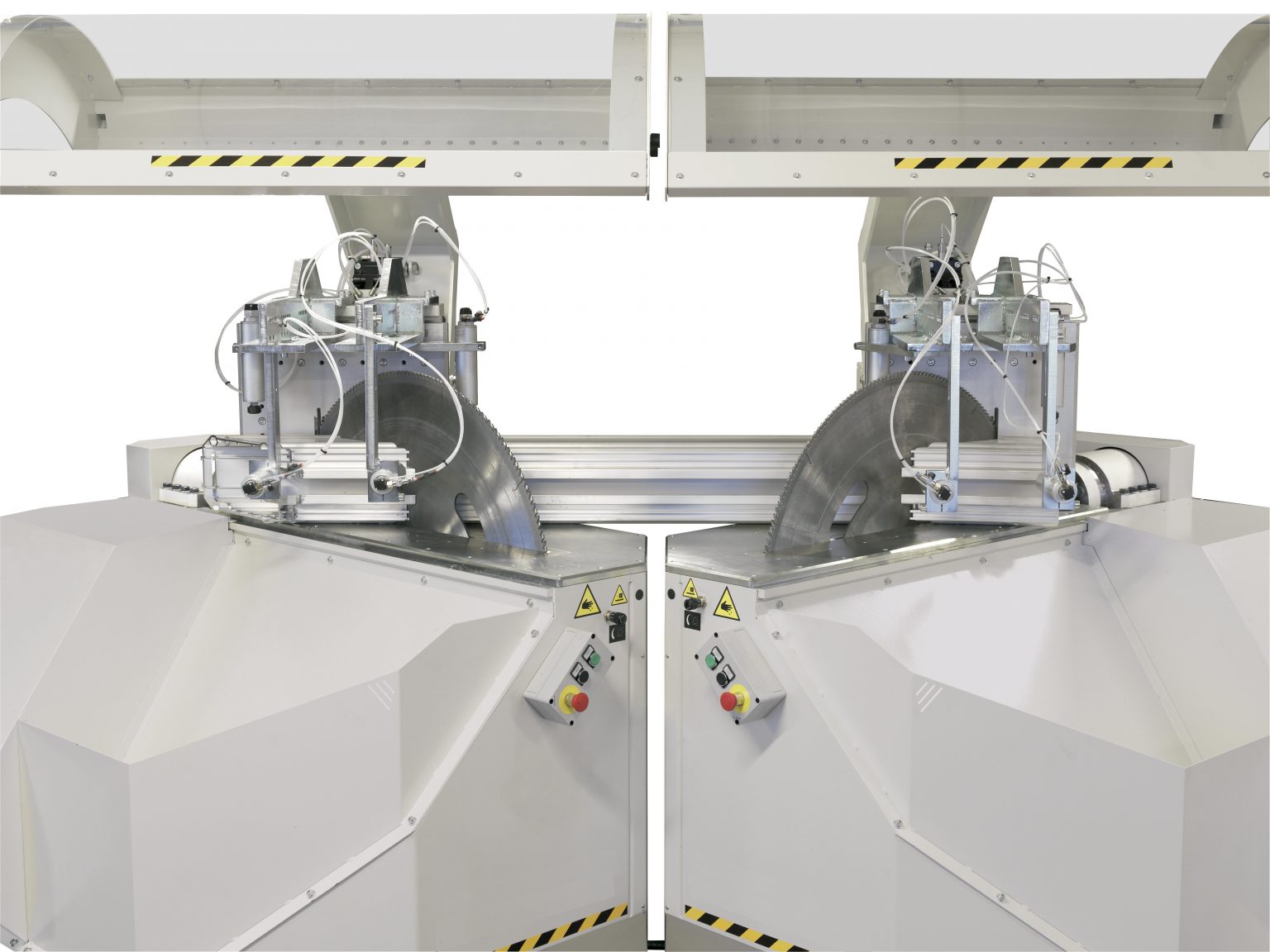

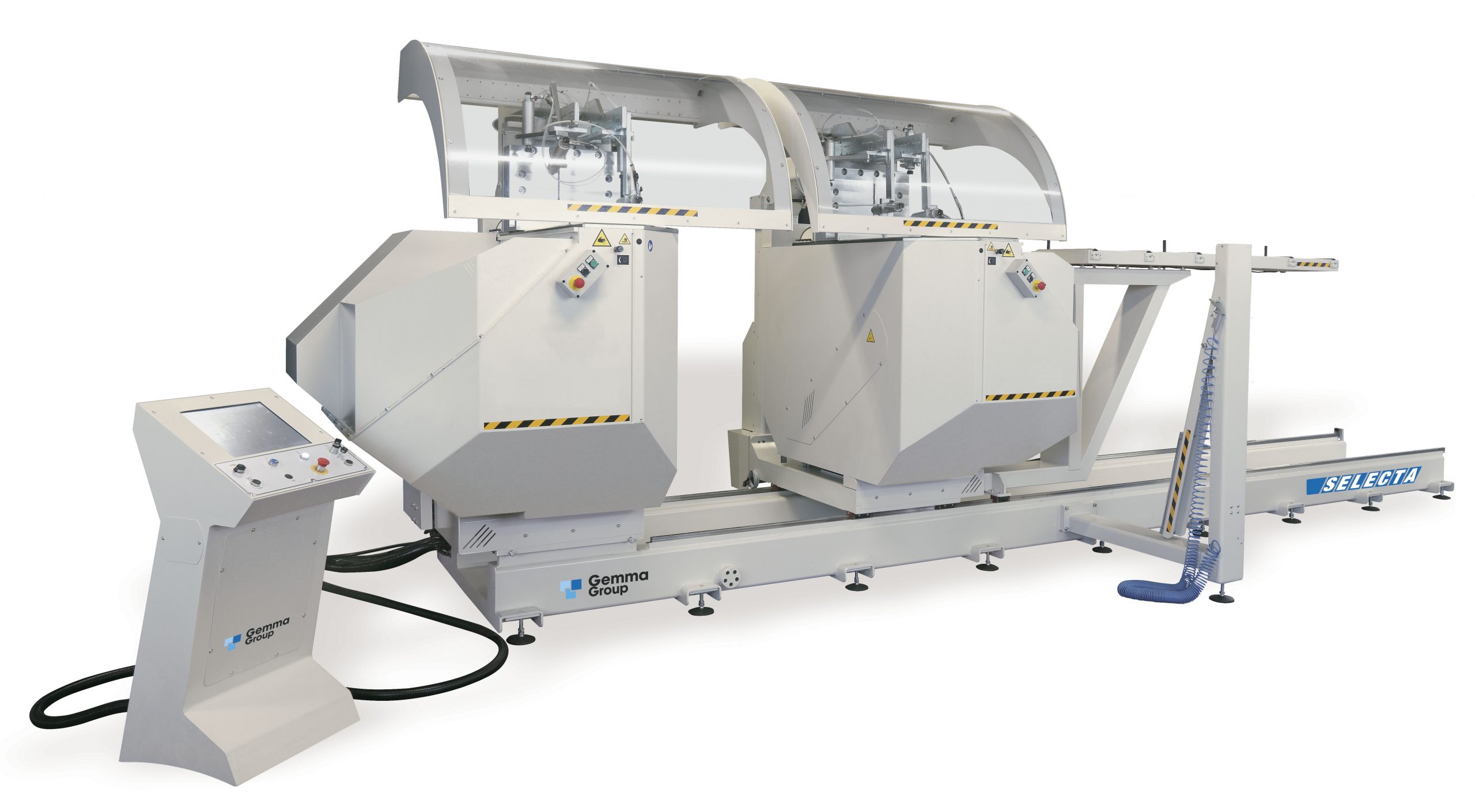

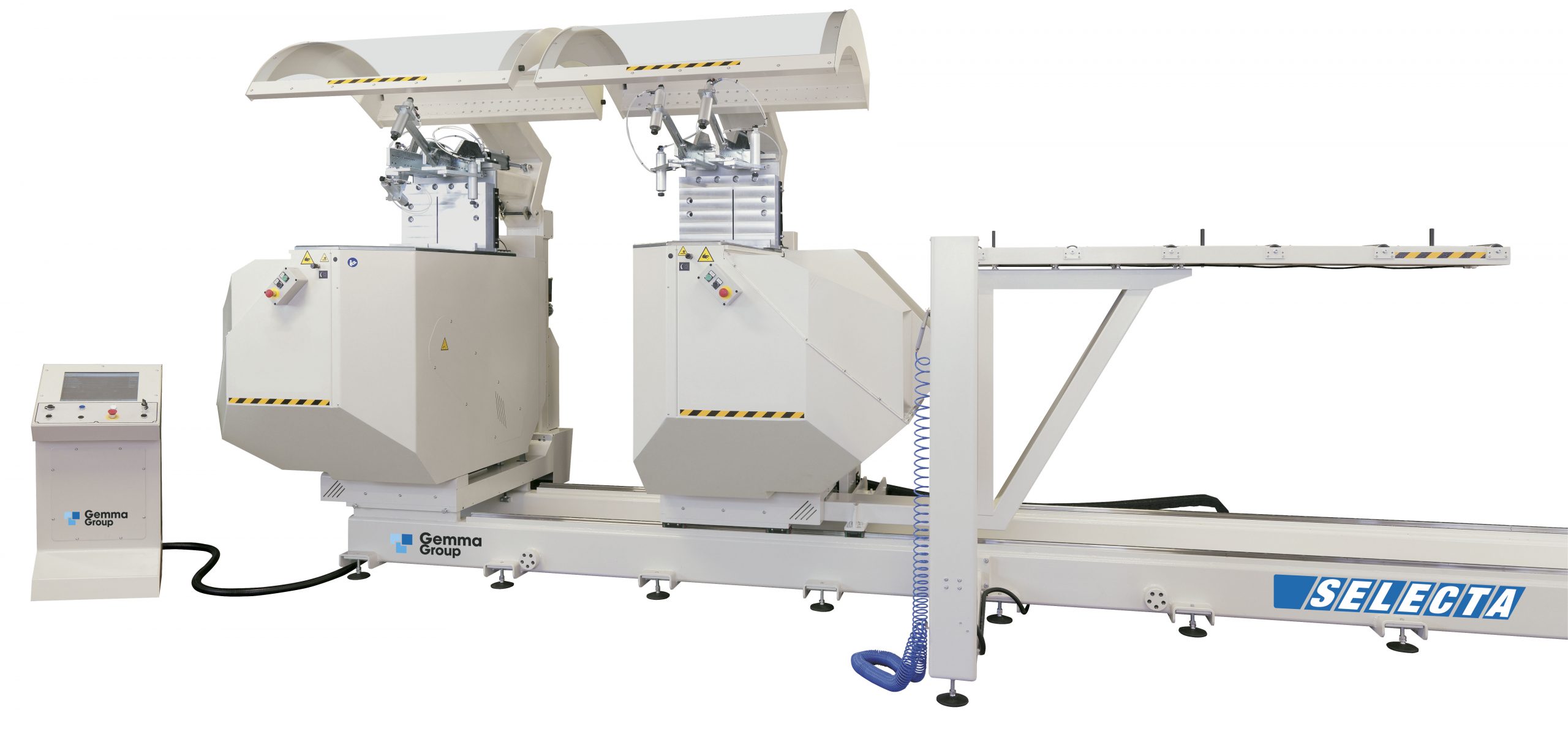

Two-head miter saw with tilting and rotating rising blades for compound cuts. Strongly ribbed electro-welded steel base. Fixed left cutting unit, right unit with software-controlled automatic displacement. Infeed roller conveyor combined with the mobile head. Selecta AL is equipped as standard with 4 vertical pneumatic clamps and 2 horizontal pneumatic clamps. The cutting units are driven by a 15 kW motor at 1,800 rpm and are equipped as standard with widia blades with a diameter of 1,050 mm. Micro-drop cutting lubrication. X axis travel of 6,000 mm. X axis movement on linear guides with ground rack. Rotation angles from 40 ° to 157.5 °. Tilt angles from 90 ° to 135 ° with electronic adjustment. Possibility of machining on pieces even longer than the X stroke. Operator interface on PC-Windows equipped with 17 ”color touch-screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
