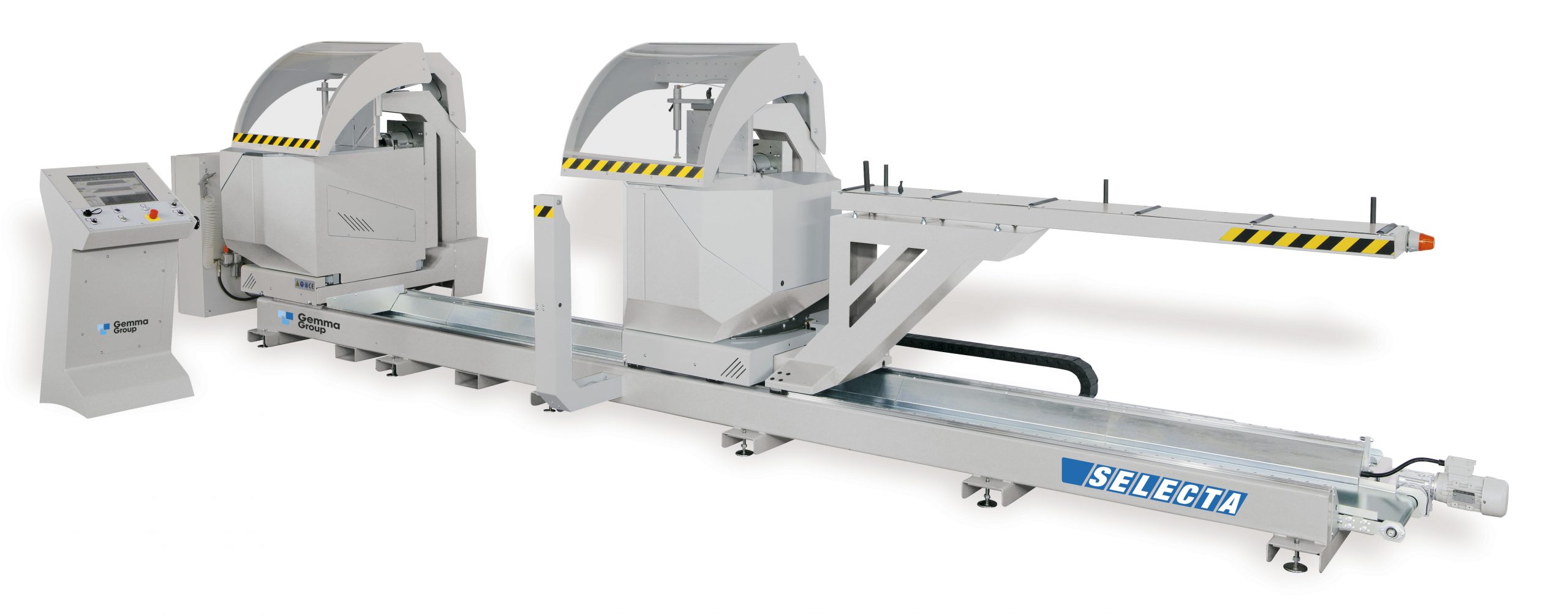

Double-head cutting-off machine with tilting and rotating ascending blades for compound cuts. Heavily ribbed electro-welded steel basement. Left cutting head fixed, right cutting head with automatic movement controlled by software. Roller support on the right moving head. Selecta P has 4 vertical pneumatic clamps. The cutting heads are controlled by a 3 kW motor at 1.800 rpm and are equipped with widia blades diam. 600 mm. Micro-drop cut lubrication. X axis stroke 5.000 mm (optional 6.000 mm). X axis movement on linear guides with ground rack. Pivoting angles: 40°-157,5° with manual regulation. Tilting angles 90°-135° with pneumatic regulation. Possibility to work on profiles longer than the X axis’ stroke. Operator’s interface on PC-Windows with 17” color screen. The machine is equipped as standard with safety and protection devices in compliance with EU regulations.
NEW
Selecta-P
Double-head cutting-off machine with tilting and rotating ascending blades for compound cuts. Heavily ribbed electro-welded steel basement.
In Stock
