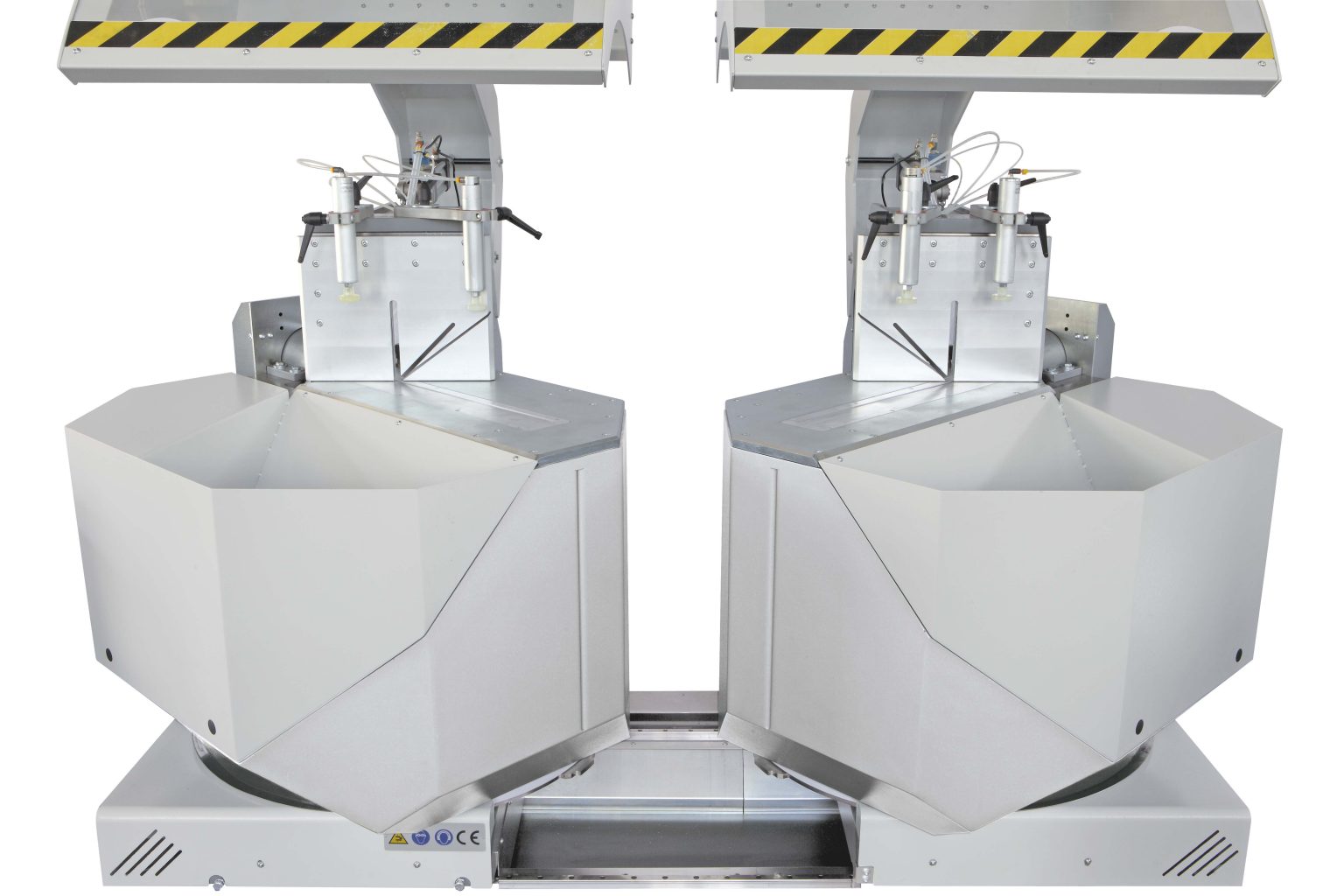

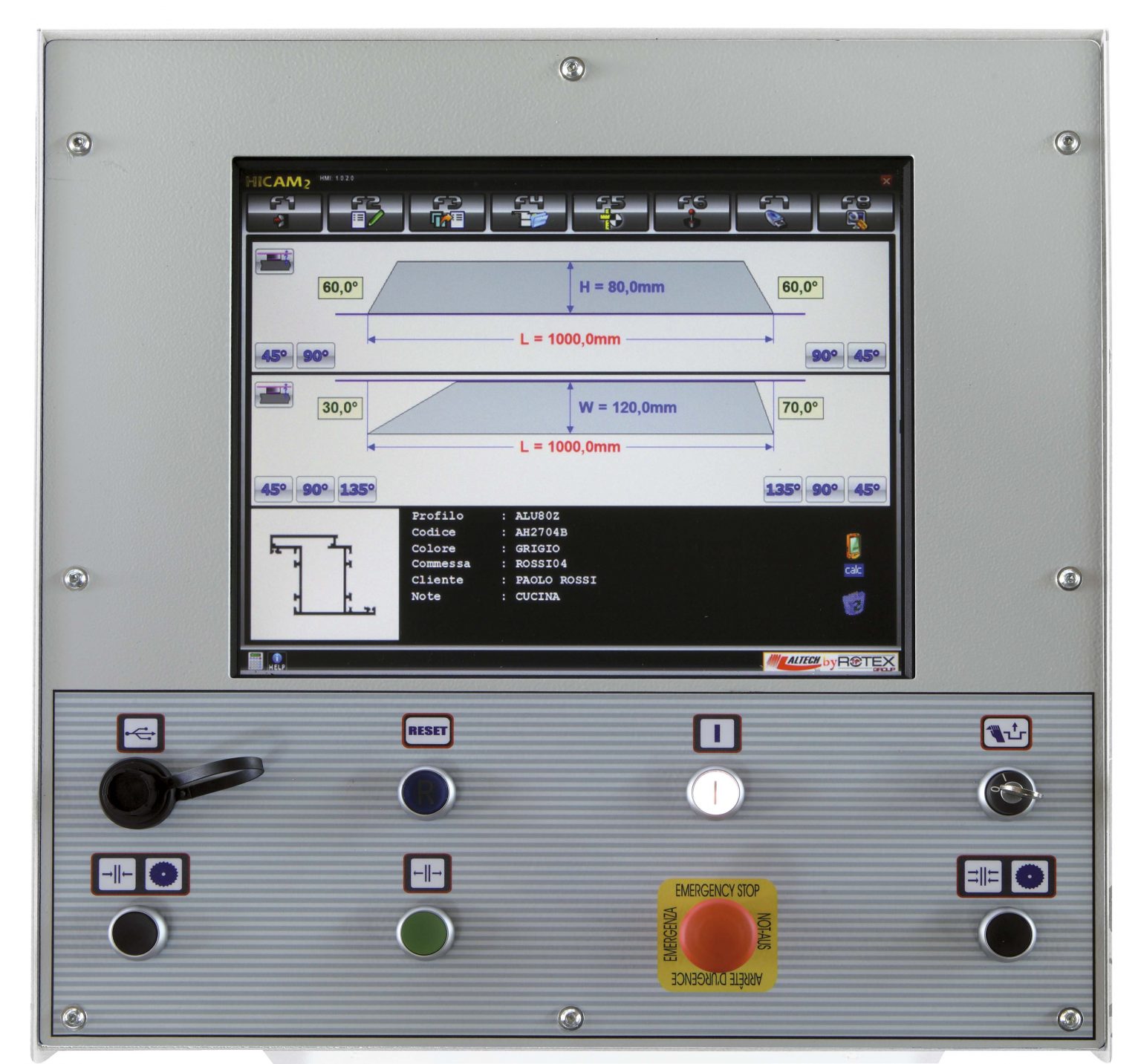

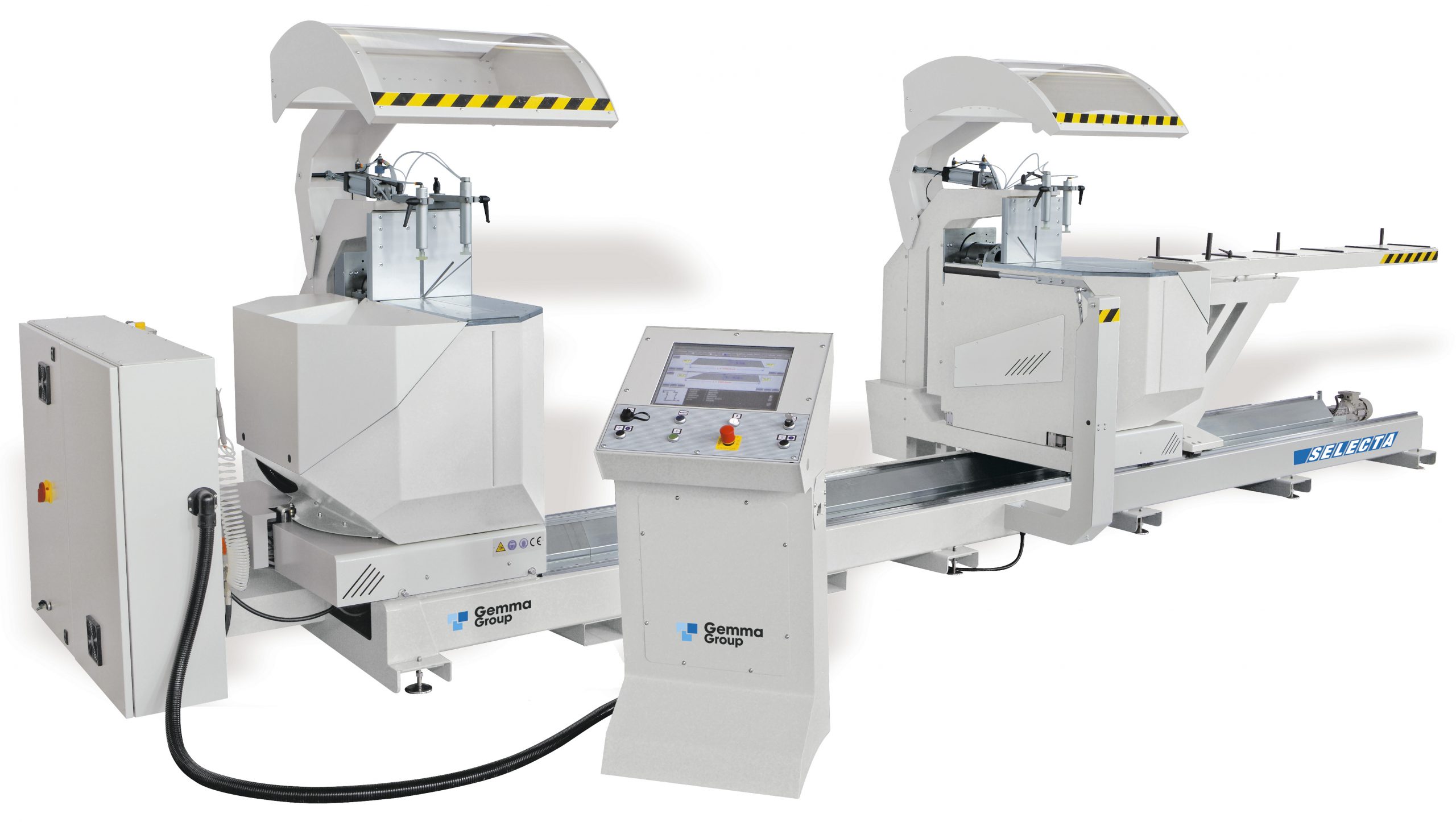

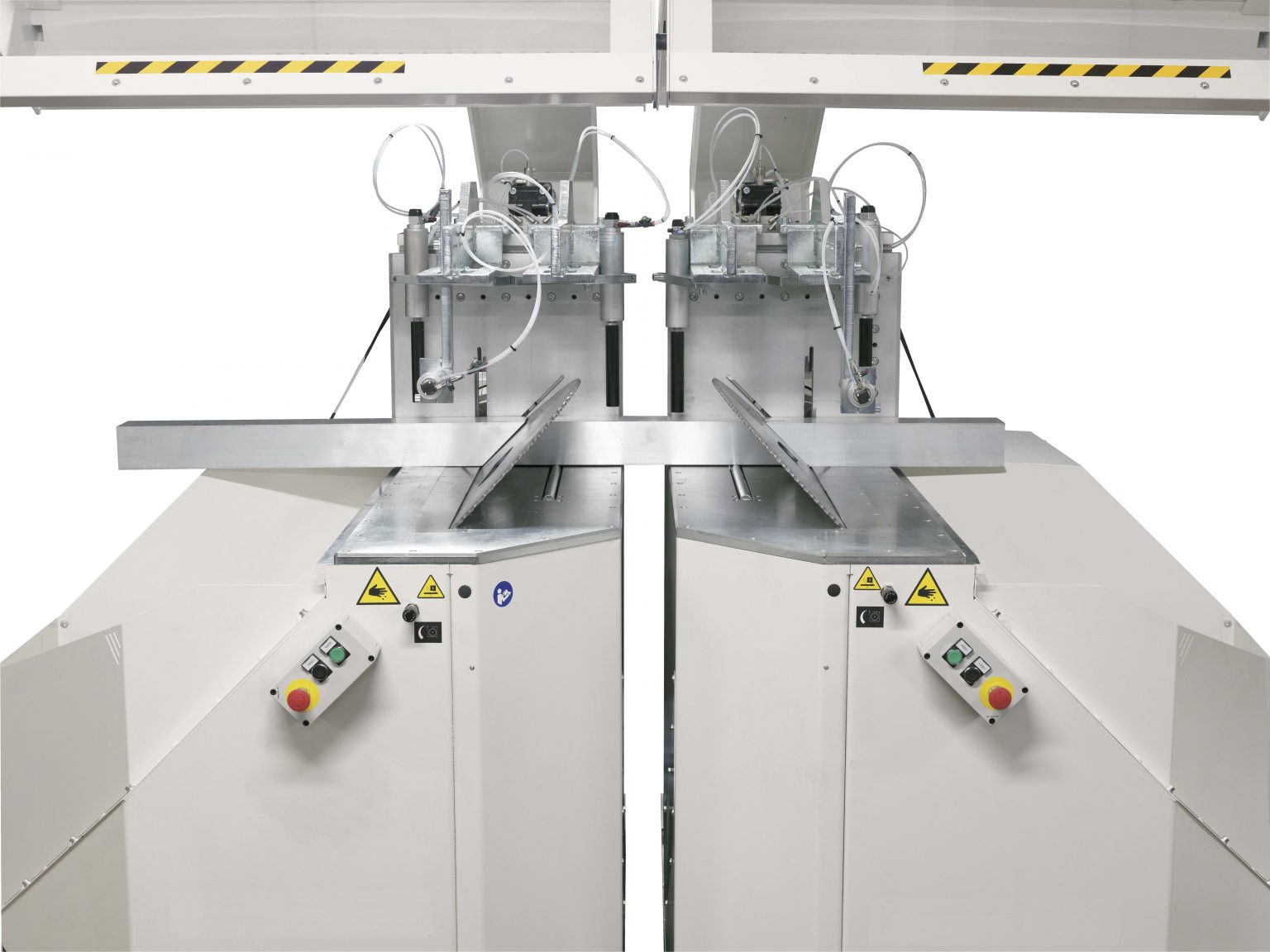

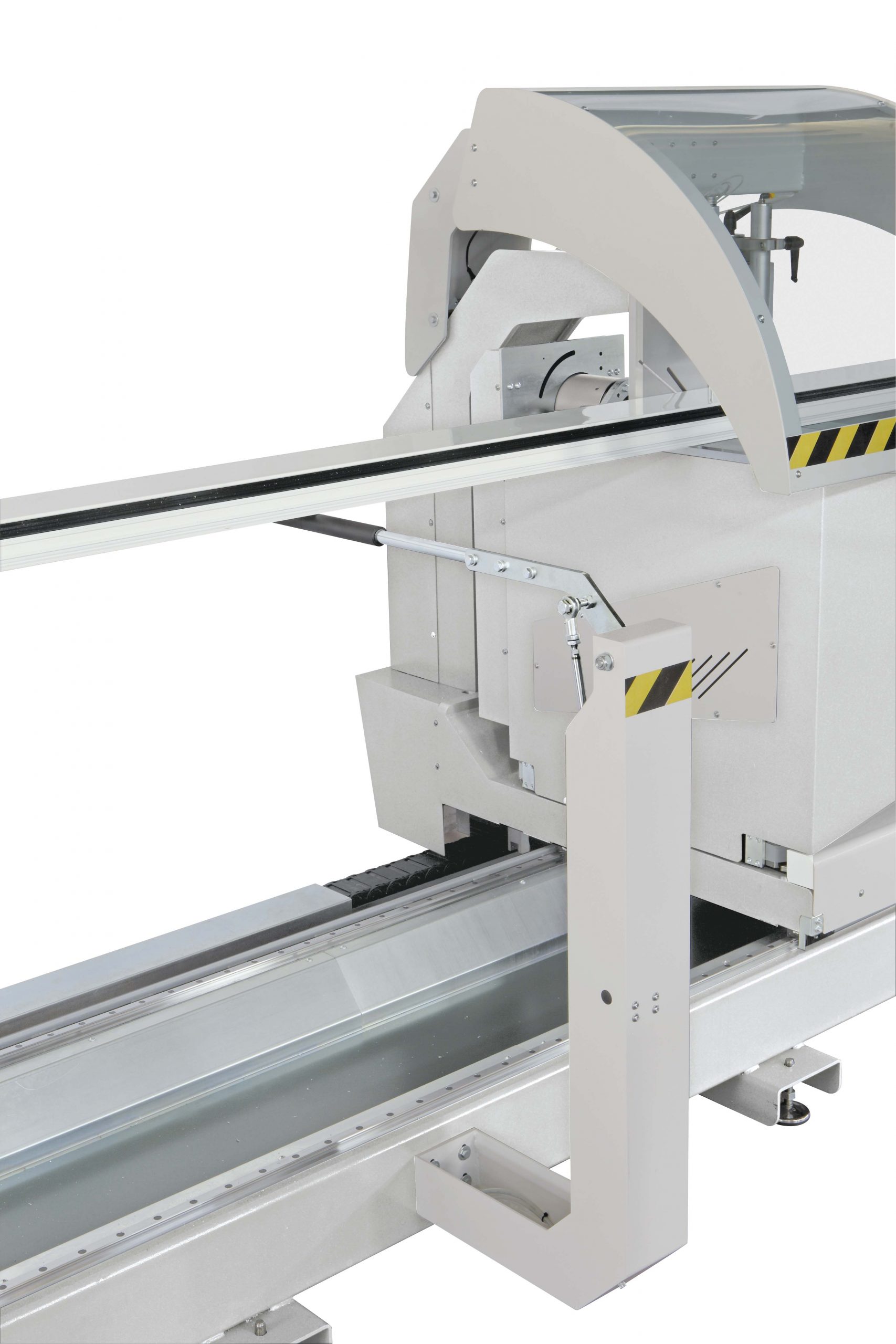

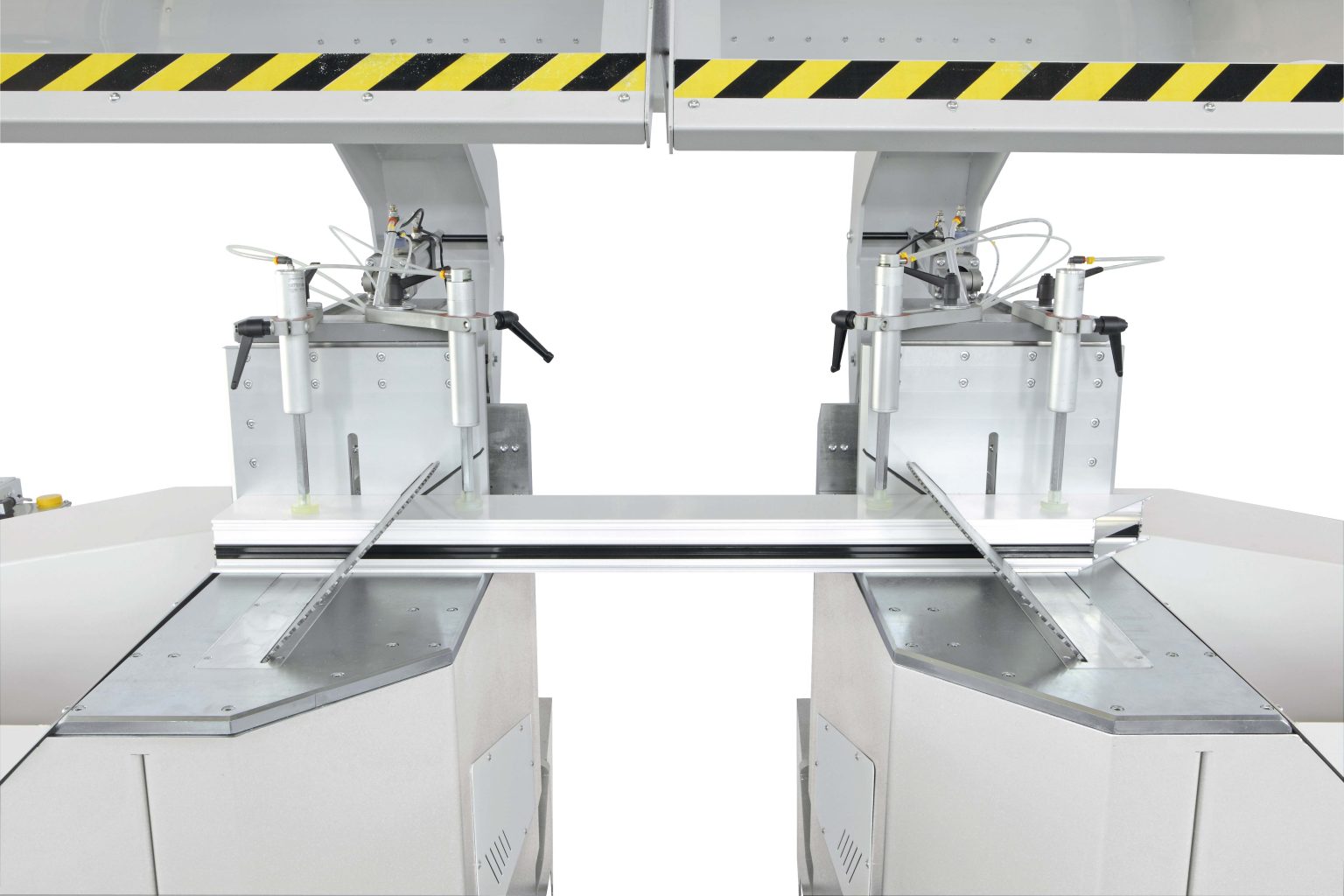

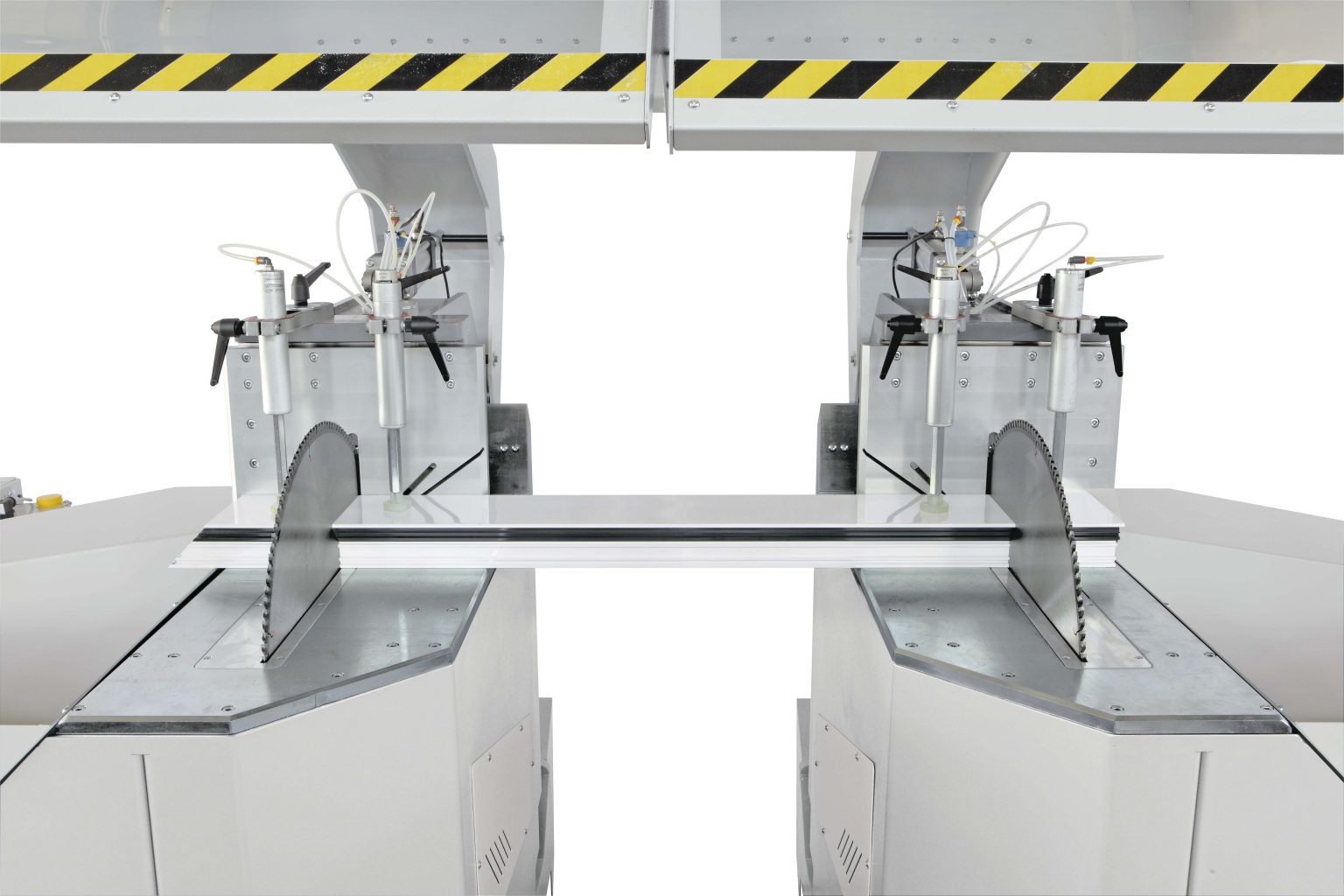

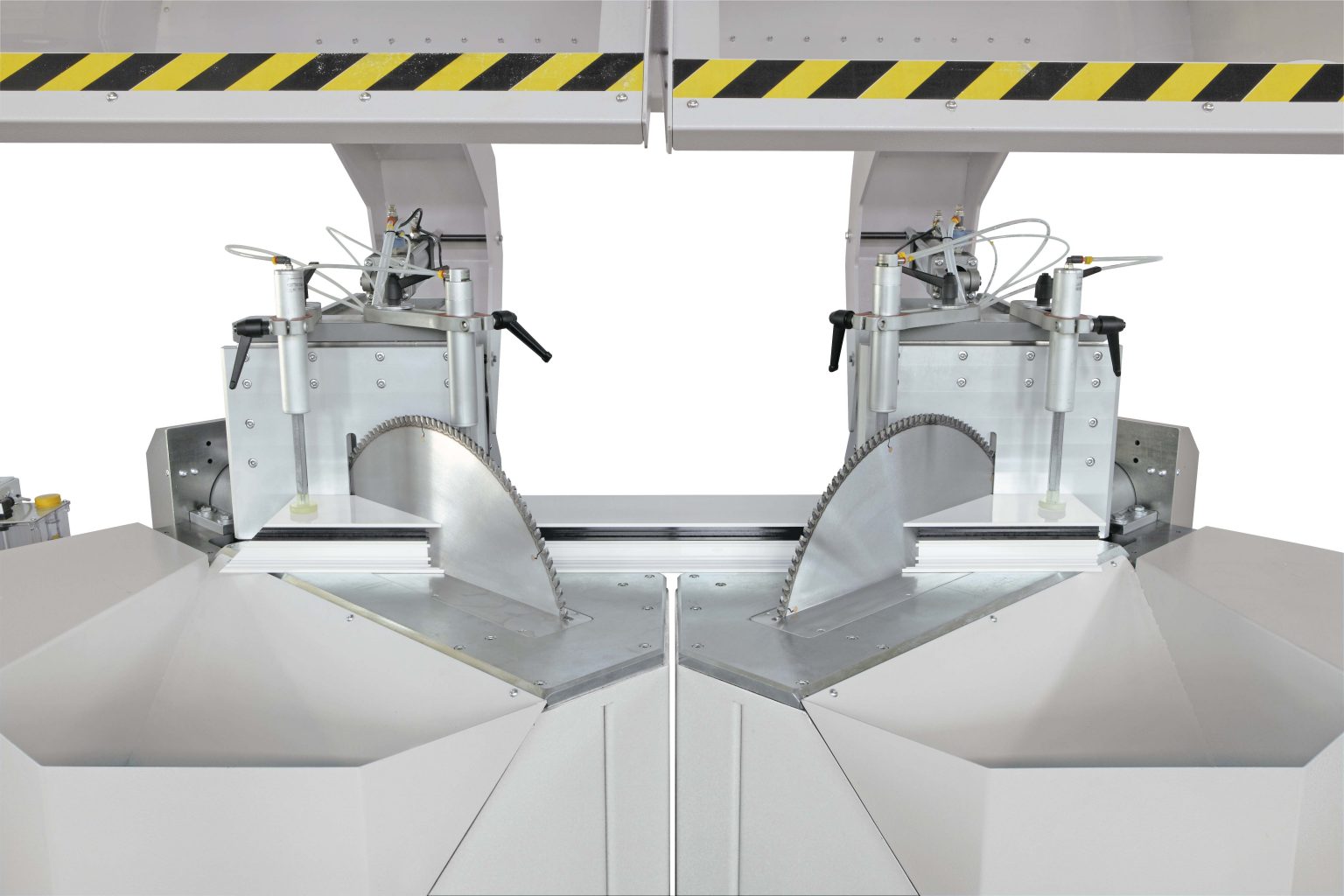

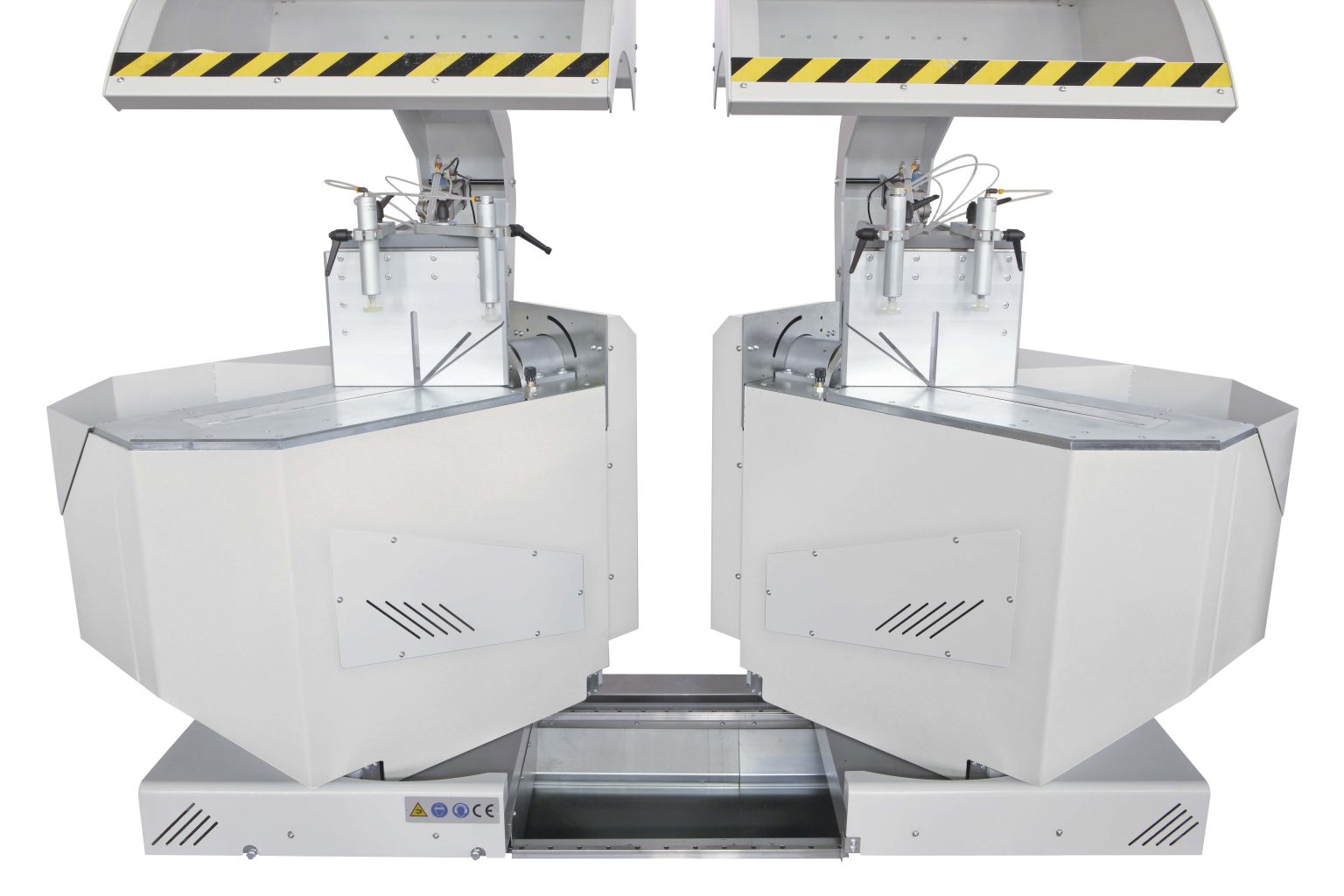

Two-head miter saw with tilting and rotating rising blades for compound cuts. Strongly ribbed base in electro-welded steel. Fixed left cutting unit; right unit with automatic shifting controlled by software. Infeed roller conveyor combined with the mobile head. Selecta A is equipped as standard with 4 vertical pneumatic clamps. The cutting units are controlled by a 3 kW motor at 1,800 rpm and are equipped as standard with widia blades with a diameter of 600 mm. Micro-drop cutting lubrication. X-axis travel of 5,000 mm (optional 6,000 mm). X axis movement on linear guides with ground rack. Rotation angles from 40 ° to 157.5 °. Tilt angles from 90 ° to 135 ° with electronic adjustment. Possibility of machining on pieces even longer than the X stroke. Operator interface on PC-Windows equipped with 17 ”color touch-screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
NEW
Selecta-A
Two-head miter saw with tilting and rotating rising blades for compound cuts. Strongly ribbed base in electro-welded steel. Fixed left cutting unit; right unit with automatic shifting controlled by software.
In Stock
