Master-A

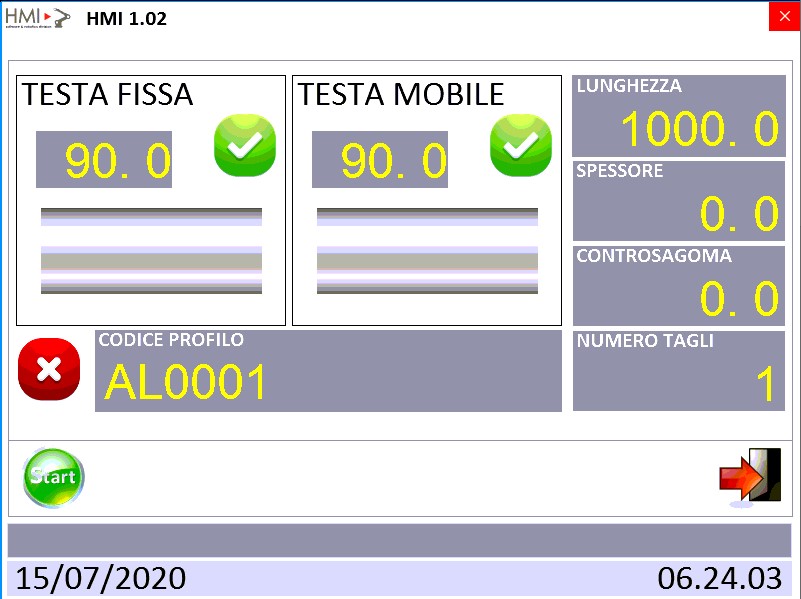

Two-head miter saw with front blades. Strongly ribbed base in electro-welded steel. Fixed left cutting unit, right unit with software-controlled automatic displacement. Infeed roller conveyor combined with the mobile head. Master A is equipped with 4 horizontal pneumatic clamps as standard. The cutting units are controlled by a 3 kW motor at 1,800 rpm and are equipped as standard with widia blades with a diameter of 600 mm. Micro-drop cutting lubrication. X-axis travel of 5,000 mm (optional 6,000 mm). X axis movement on linear guides with ground rack. Tilt angles from 20 ° to 135 ° with electronic adjustment. Possibility of machining on pieces even longer than the X stroke. Operator interface on PC-Windows equipped with 10.4 ”color touch-screen.
